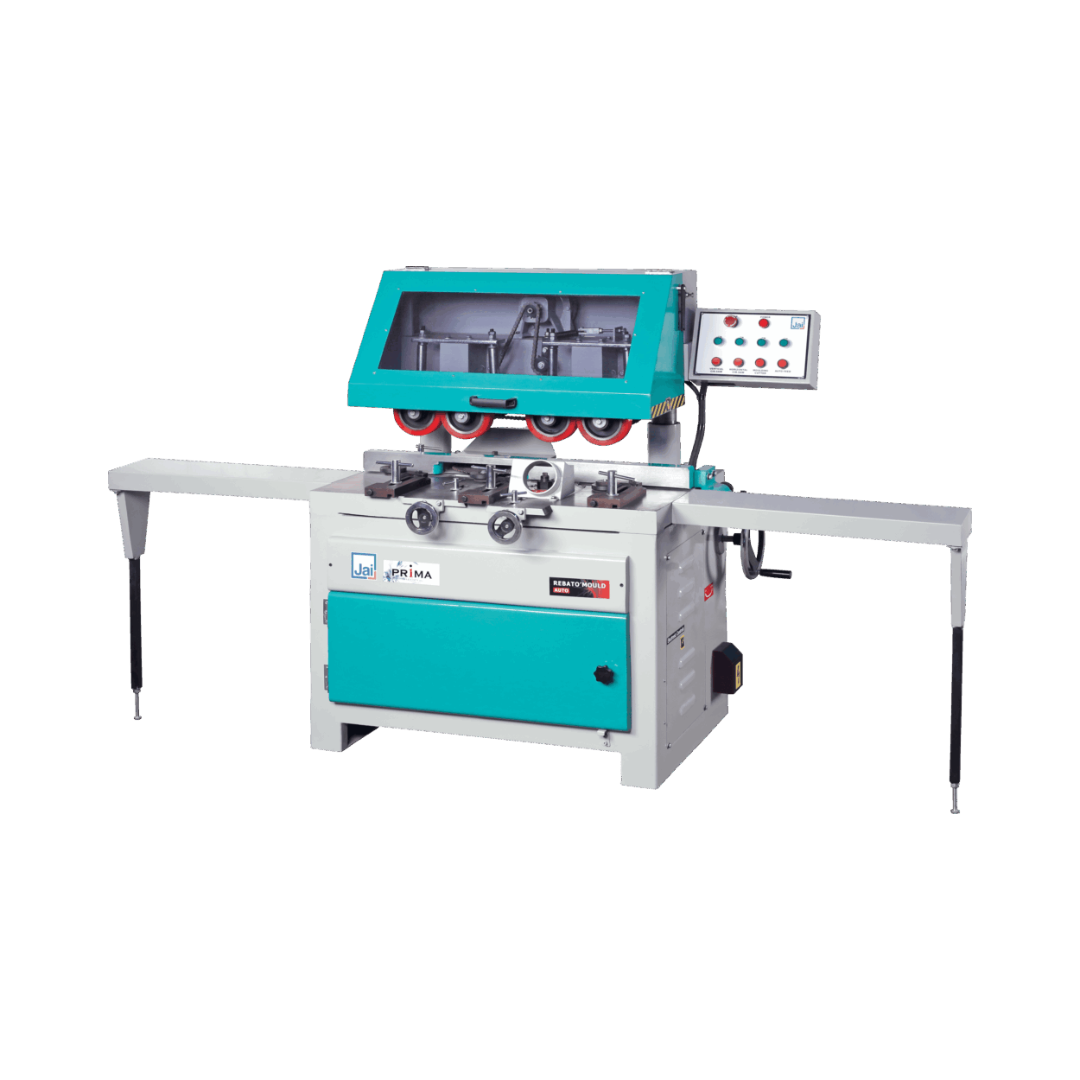

J-1510 A - (auto) (Rebating & Moulding)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Details	Unit	J-4423
Min working thickness & width	mm / inch	50 & 150 / 2" & 6"
Max working thickness & width	mm / inch	75 & 150 / 3" & 6"
Max rebating capacity	mm / inch	50 & 25 / 2" & 1"
Work table size	mm / inch	1070 x 710 / 42" x 28"
Horizontal cutter fine adjustment	mm	8
Horizontal circular saw dia. x bore	mm / inch	254 x 25.4 / 10" x 1"
Vertical circular saw dia. x bore	mm / inch	300 x 25.4 / 12" x 1"
Max moulding cutter thickness	mm / inch	25 / 1"
Feeding speed of workpiece	feet / min.	12
Circular saw (both) / moulding speed	rpm	4500 / 6000
Max moulding cutter dia. x bore	mm / inch	135 x 25.4 / 5¼" x 1"
Size of dust collection port - dia	mm / inch	100 / 4"
Ele. motor for hori & vertical cutter	hp / rpm	5 & 3 / 2800
Ele. motor for mould. Cutter	hp / rpm	Mar-00
Ele. motor for workpiece feeding	hp / rpm	0.5 / 1440
Total power	hp	11.5
Approx. weight	kg	575
