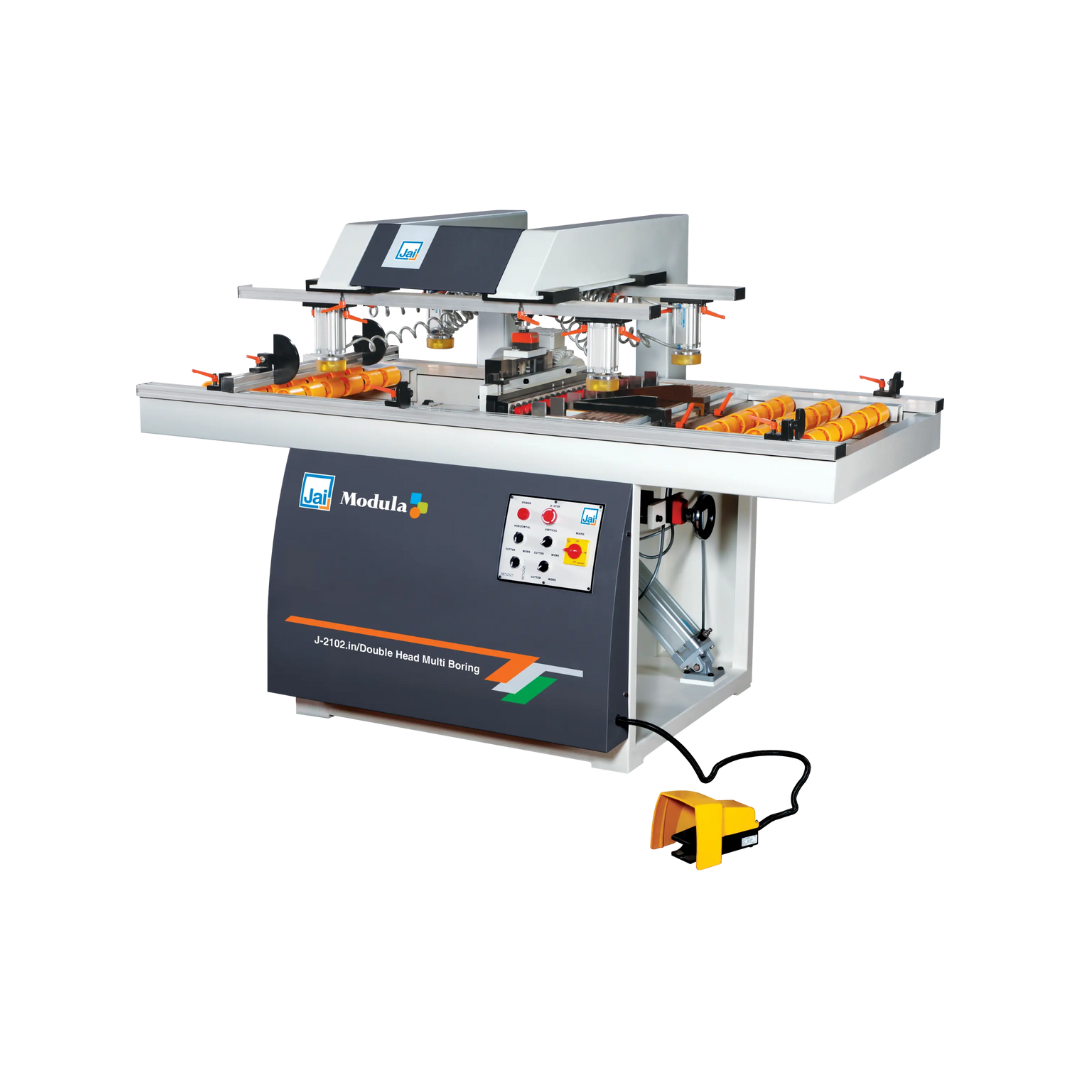

J-2102.in (Semi Auto) Double Head Multi Boring

Home / Panel Processing - Modula / Multi Boring / J-2102.in (Semi Auto) Double Head Multi Boring

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Details	Unit	J-2102.in
Maximum working thickness	mm	Mar-00
Maximum Size of Work Piece (L x W)	mm	2000 x 640
Number of Spindle Head	no.	2
Number of Spindles Per Head	no.	21
Total Spindle	no.	21 + 21 = 42
Minimum Center Distance between 2 Vertical Heads	mm	392
Maximum Center Distance between 2 Vertical Heads	mm	472
Shank diameter of drill	mm	10
Drilling Depth	mm	0 - 50 (drill length 70 mm)
Electric Motor / Total Power	no./hp	2 x 2 = 4
Machine dimension (L x B x H)	mm	2000 x 1220 x 1340
Approx. net weight	kg	500
