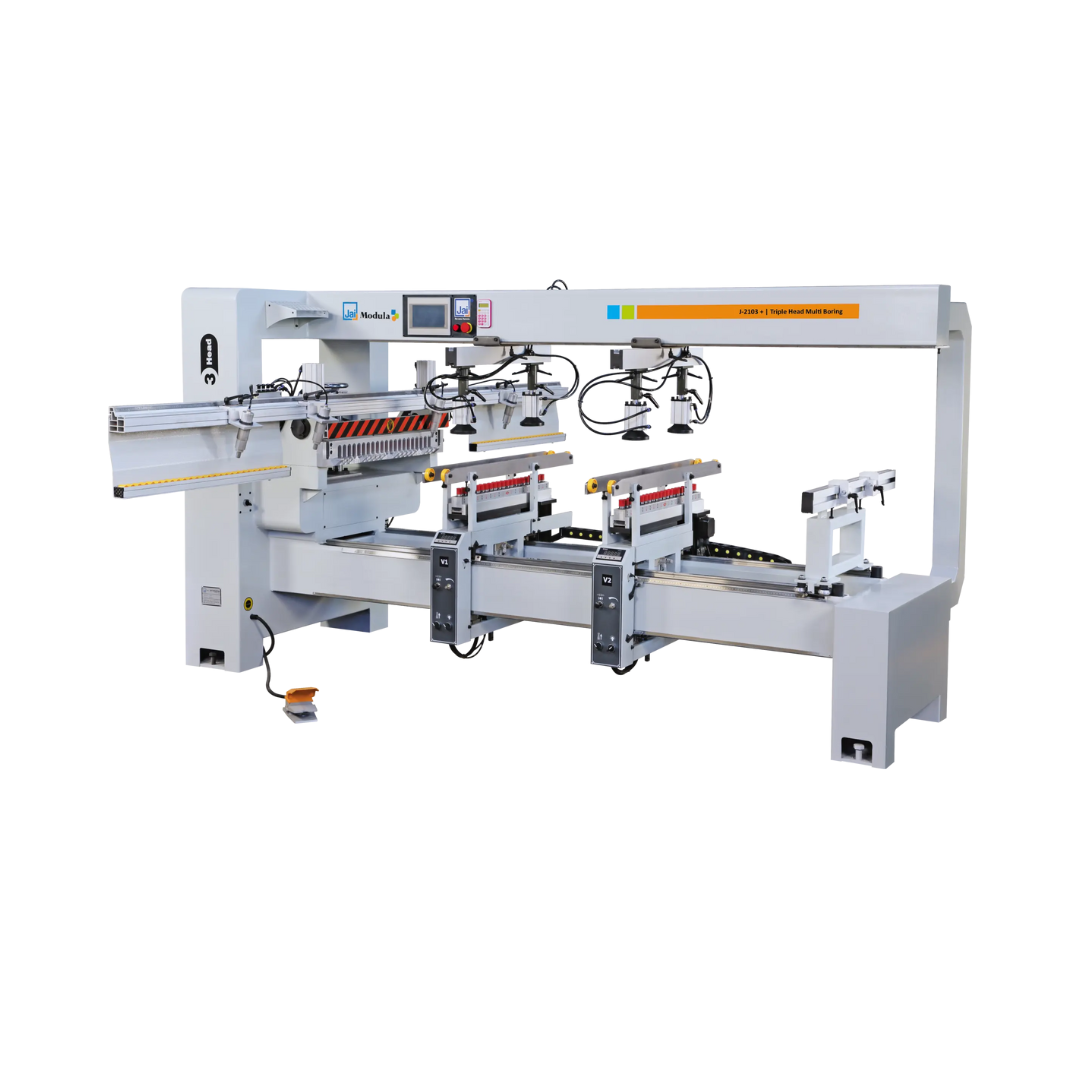

J-2103 + (Semi Auto) Triple Head Multi Boring

Home / Panel Processing - Modula / Multi Boring / J-2103 + (Semi Auto) Triple Head Multi Boring

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Details	Unit	J-2103 +
Max. working thickness	mm	60
Max. size of work piece	mm	1850 x 640
No. of spindle head	mm	Three
No. of spindles per head	no's	21
Total spindles	no's	21 + 21 + 21 = 63
Minimum center distance between 2 vertical heads	mm	150
Maximum center distance between 2 vertical heads	mm	1650
Shank diameter of drill	mm	10
Drilling depth	mm	0 - 50 (drill length 70 mm)
Air pressure required	kg / cm²	6 to 7
Electric Motor / Total Power	no / hp	3 x 2 = 6
Machine Dimensions (L x B x H)	mm	3000 x 3050 x 1560
Approx. net weight	kg	900
