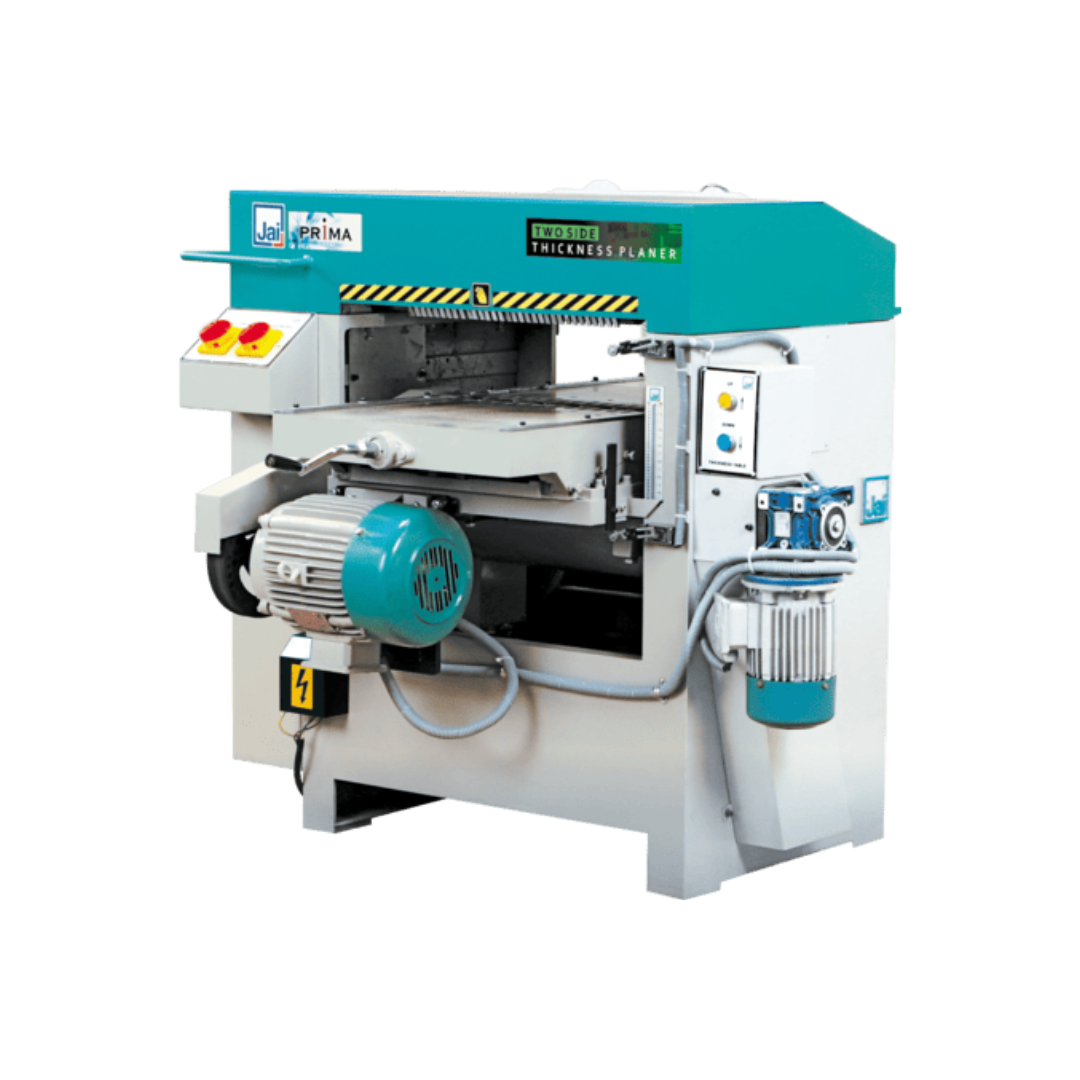

J-2318 auto (Heavy duty with Anti kick-back mechanism)

Home / Solid Wood Machinery - Wudpro / Two Side Thikness Planer / J-2318 auto (Heavy duty with Anti kick-back mechanism)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Details	Unit	J-2318 auto	J-2324 auto
Max. planing width	mm / inch	455 / 18"	610 / 24"
Max. working thickness	mm / inch	150 / 6"	150 / 6"
Min. working thickness	mm / inch	9 / ⅜”	9 / ⅜”
Min. length of workpiece for thicknessing	mm / inch	254 / 10"	254 / 10"
Feeding speed	feet / min.	24	24
Cutter block diameter	mm / inch	95 / 3.75"	95 / 3.75"
Cutter block speed	rpm	4000	4000
Standard cutter block	code no.	3B-W	3B-W
Size of dust collection port - dia.	mm / inch	100 / 4"	100 / 4"
Upper roll power	mm / inch	7.5 / 1440	7.5 / 1440
Bottom roll power	hp / rpm	5 / 1440	5 / 1440
Thickness table up-down power	hp / rpm	0.5 / 1440	0.5 / 1440
Power required	hp / rpm	13	13
Approx. weight	kg	650	750
