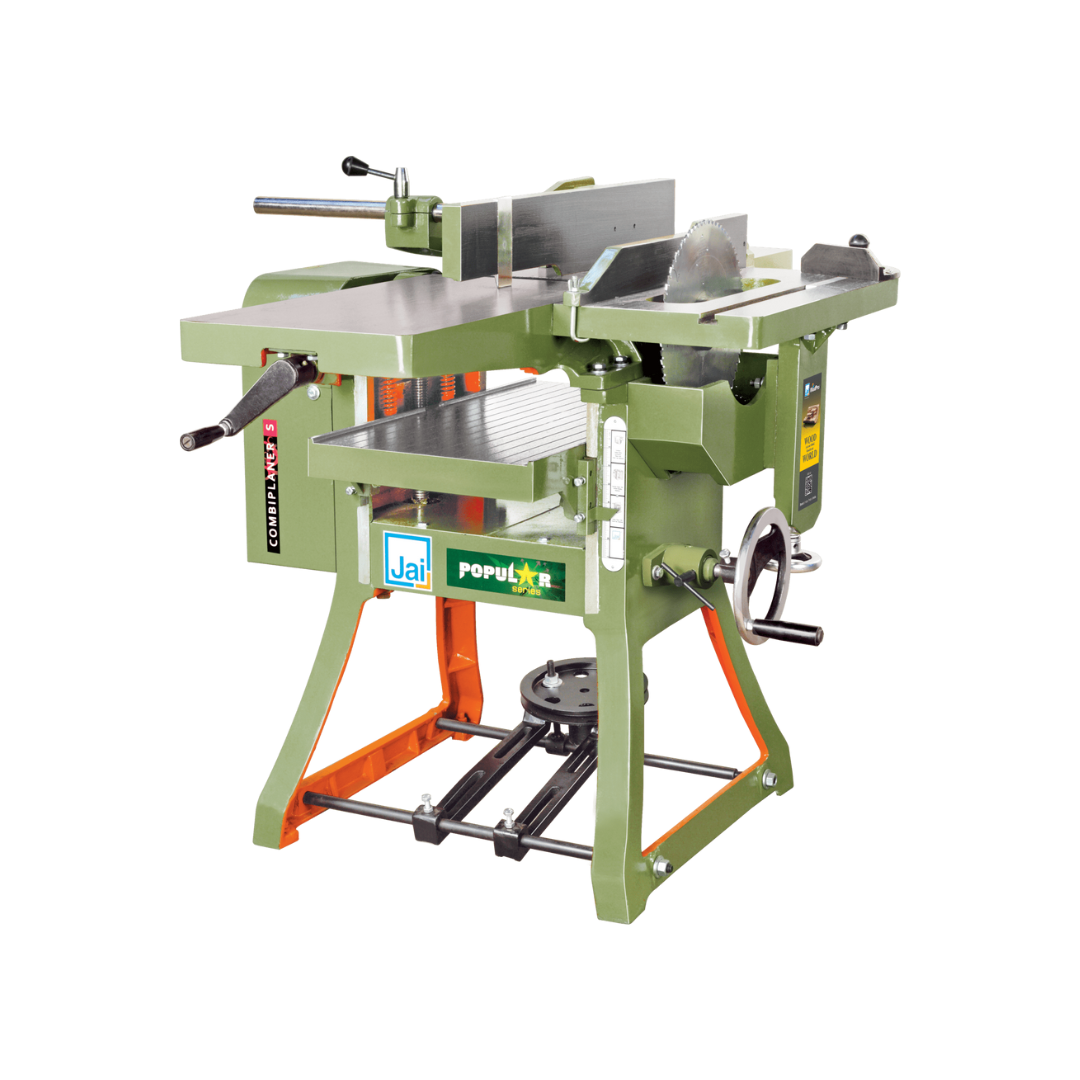

J-303 Combi Planer - S

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Specification	Unit	J-302	J-303	J-303 L
Surfacing capacity	mm / inch	254 / 10"	330 / 13"	330 / 13"
Max planing width	mm / inch	254 / 10"	330 / 13"	330 / 13"
Thicknessing capacity	mm / inch	177 / 7"	177 / 7"	177 / 7"
Length of surface table	mm / inch	1140 / 45"	1220 / 48"	1550 / 61"
Rebating capacity	inch	12.5 / ½"	12.5 / ½"	12.5 / ½"
Length of thickness table	mm / inch	610 / 24"	660 / 26"	660 / 26"
Min. length of workpiece for thicknessing	mm / inch	254 / 10"	254 / 10"	254 / 10"
Feeding speed	feet / min.	24	24	24
Cutter block diameter	mm / inch	95 / 3.75"	95 / 3.75"	95 / 3.75"
Cutter block speed	rpm	4000	4000	4000
Standard cutter block	code no.	2B	3B-W	3B-W
Circular saw table size	mm / inch	560 x 280 / 22" x 11"	560 x 280 / 22" x 11"	560 x 280 / 22" x 11"
Up/Down movement of cir. saw table	mm / inch	75 / 3"	75 / 3"	75 / 3"
Max circular saw diameter	mm / inch	300 / 12"	300 / 12"	300 / 12"
Power required	hp / rpm	2 / 1440	3 / 1440	3 / 1440
Approx. weight	kg	280	320	350
Edit cell here 16-0	Edit cell here 16-1	Edit cell here 16-2	Edit cell here 16-3	Edit cell here 16-4
