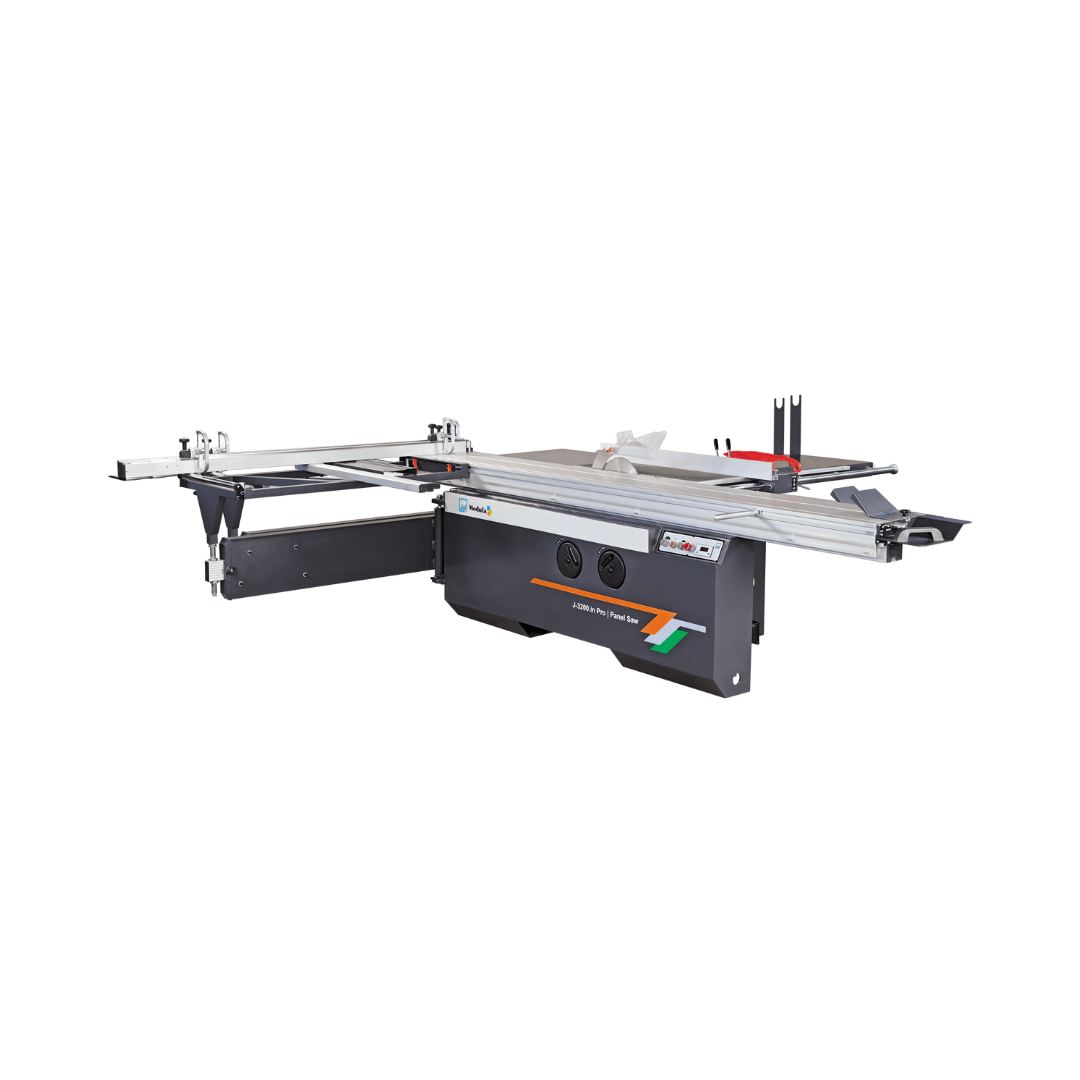

J-3200.in Pro

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Details	Unit	J-3200.in Pro
Sliding Table
Sliding table length	mm	3200
Sliding table width	mm	360
Main Saw Unit
Max. diameter x bore - saw blade	mm	355 x 30
RPM saw blade	rpm	4000 / 5000
Tilting of saw blade electronic digital read out	degree	90° - 45° (manual)
Max. cutting depth at 90°	mm	102
Max. cutting depth at 45°	mm	72
Up-down movement of saw blade	-	Manual
Motor for saw blade	hp	7.5
Scoring Saw Unit
Max. diameter x bore - scoring blade	mm	120 x 20
RPM scoring blade	rpm
Tilting of scoring blade electronic digital read out	degree	122 x 20
Lateral adjustment scoring blade	mm	123 x 20
Max. depth of cut off scoring blade	mm	124 x 20
Up-down movement of scoring blade	-	125 x 20
Motor for scoring unit	hp	126 x 20
Other Specifications
Cutting width / rip capacity	mm	1250
.Dimension main saw table	mm	560 x 900
Length cross - cut fence	mm	2000 (telescopes to 3200 mm)
Dust extraction port diameter	mm	100 & 50
Total power	hp	8.5
Machine dimension (L x B x H)	mm	3400 x 3710 x 1300
Approx. net weight	kg	850
