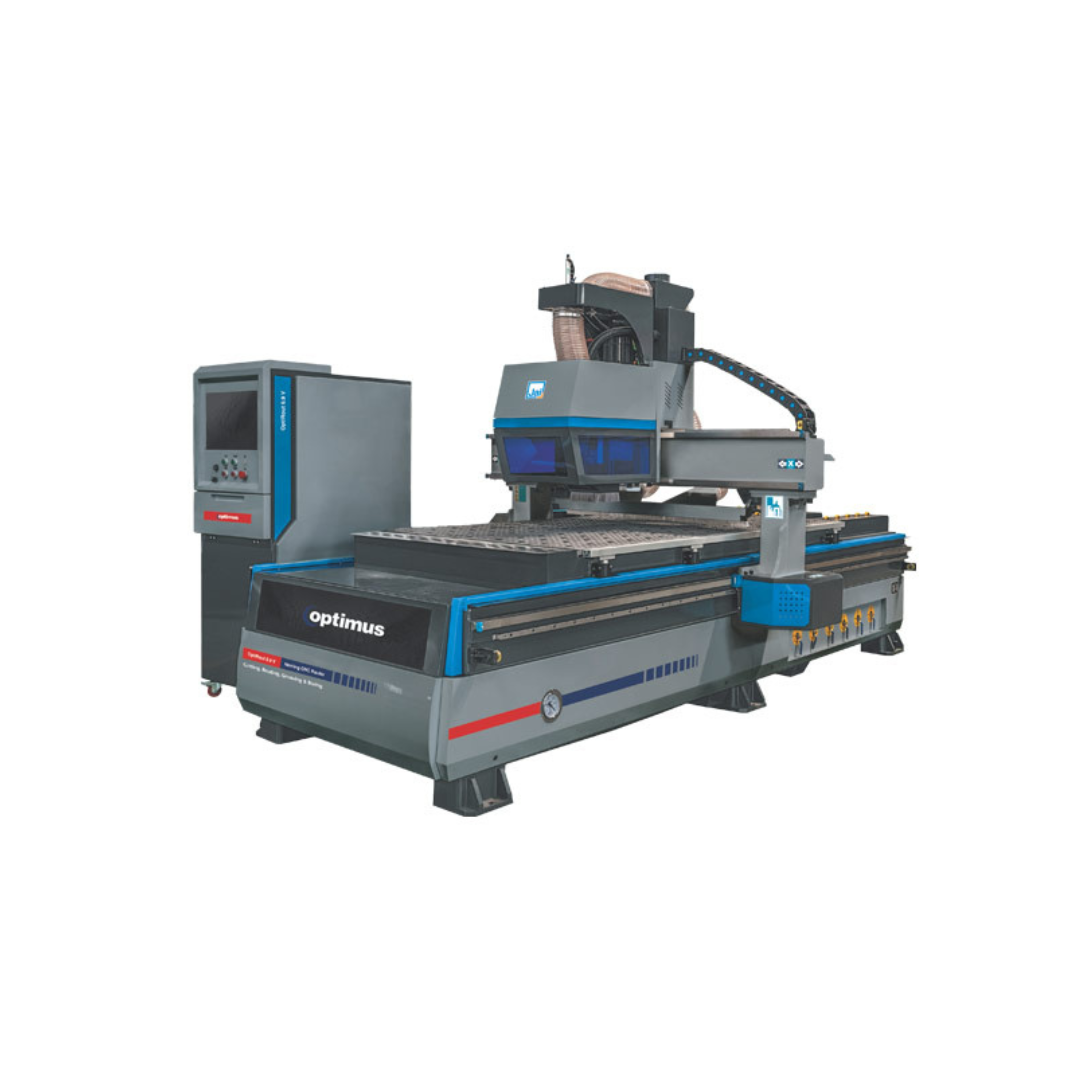

OptiRout 6.9V

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical Specification	Unit	OptiRout 6.9V
X - Y - Z Axis working area	mm	1300 x 2500 x 200
Resolutions	mm	0.0025
X - Y movement	-	Rack & pinion gear drive / Taiwan
Z movement	-	Heavy ball screw / TBI
Linear guide - Taiwan	mm	30
ATC air cooled spindle and boring head	no x kw / rpm	2 x 6 / 18000, 9V Boring head (5 + 4)
Boring head power	kw	1.5
Controller & drive motors	-	WEIHONG with Servo motors and shimpo reducer
Working voltage	-	AC 380 V / 50 Hz, 3 Ø
Command code	-	G code
Collet type & size	mm	ER32 (6, 8)
Compatible software	-	Art Cam, Alfa Cam
Oil lubrication system	-	Standard
Vacuum table & pump	-	Standard with 7.5 kw 'air type pump
Total power	hp	25.5
M/c. dimension (L x B x H)	mm	4200 x 3400 x 2450
Approx. net weight	kg	2500
