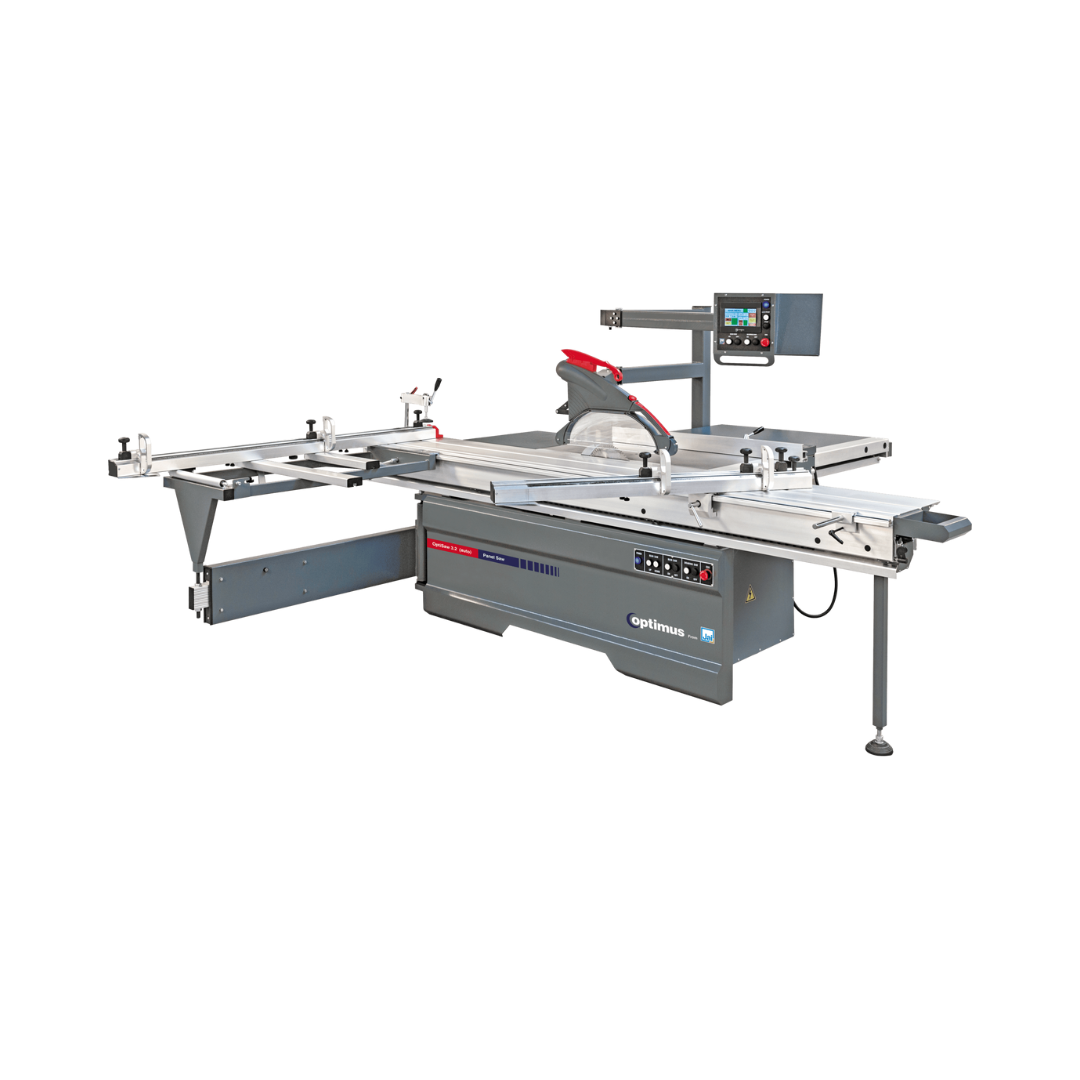

OptiSaw 3.2 (Auto)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical Specification	Unit	OptiSaw 3.2 (Auto)
Sliding table
Sliding table length	mm	3200
Sliding table width	mm	435
Main saw unit
Max. diameter saw blade	mm	355 x 30
Saw blade speed	rpm	3000 / 4000 / 5000
Tilting of saw blade	degree	90° - 45° (auto)
Up-down movement of saw blade	-	auto
Motor for saw blade	hp	7.5
Scoring saw unit
Max. diameter scoring blade	mm	120 x 20
Scoring blade speed	rpm	8000
Tilting of scoring blade	degree	90° - 45° (auto)
Lateral adjustment scoring blade	mm	± 3
Max. depth of cut off scoring blade	mm	5
Motor for scoring unit	hp	1
Other specifications
Cutting width / rip capacity	mm	1250
Length cross-cut fence	mm	2000 (telescopes to 3200 mm)
Dust extraction port diameter	mm	100
Total power	hp	9.6
Machine dimension (L x B x H)	mm	3400 x 3750 x 1800
Approx. net weight	kg	1300
