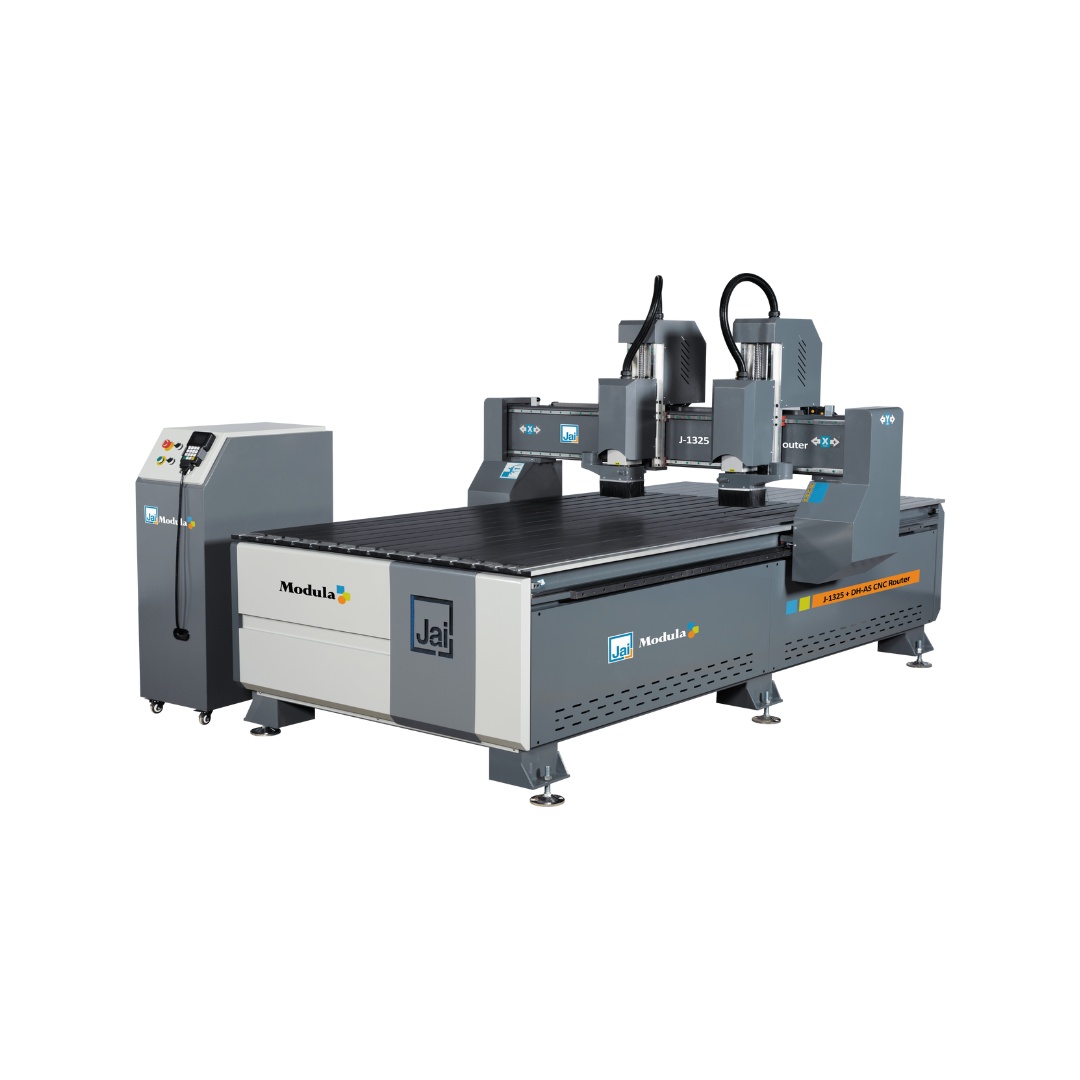

J-1325 + DH-AS

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Details	Unit	J-1325 + DH-AS	J-1325 VT + DH-AS
X - Y - Z axis working area	mm	1300 x 2500 x 300	1300 x 2500 x 300
Traveling Positioning Accuracy	mm	±0.1 mm	±0.1 mm
X, Y Working Delicacy	mm	±0.05 mm	±0.05 mm
X - Y movement	-	Rack & pinion gear drive	Rack & pinion gear drive
Z movement	-	Ball screw	Ball screw
Body structure		Steel structure with six legs	Steel structure with six legs
Maximum speed	mm/min	35,000	35,000
Maximum cutting speed	mm/min	25,000	25,000
Spindle	kw/rpm	2 x 3.5 / 4.5 kw/ 18000 rpm Air cooled spindle	2 x 3.5 / 4.5 kw/ 18000 rpm Air cooled spindle
Drive motors	-	Servo	Servo
Invertor	kw	3.7	3.7
Guide rail	-	20 mm “Hiwin” Taiwan guide rail	20 mm “Hiwin” Taiwan guide rail
Working voltage	-	AC 380V / 50Hz, 3Ø	AC 380V / 50Hz, 3Ø
Command code	-	G code	G code
Computer interface	-	USB 2.0	USB 2.0
Collet type & size	-	ER25	ER25
Compatible Software	-	Art Cam / Type 3	Art Cam / Type 3
Controls	-	Digital signal processor (DSP) A11E	Digital signal processor (DSP) A11E
Oil lubrication system	-	Manual	Manual
Vacuum table	-	Optional	Standard with 7.5 kw air cooled vacuum pump
Total power	hp	16	26
Machine dimensions (L x B x H)	mm	3200 x 3500 x 1800	3200 x 3500 x 1800
Approx. net weight	kg	1400	1500
