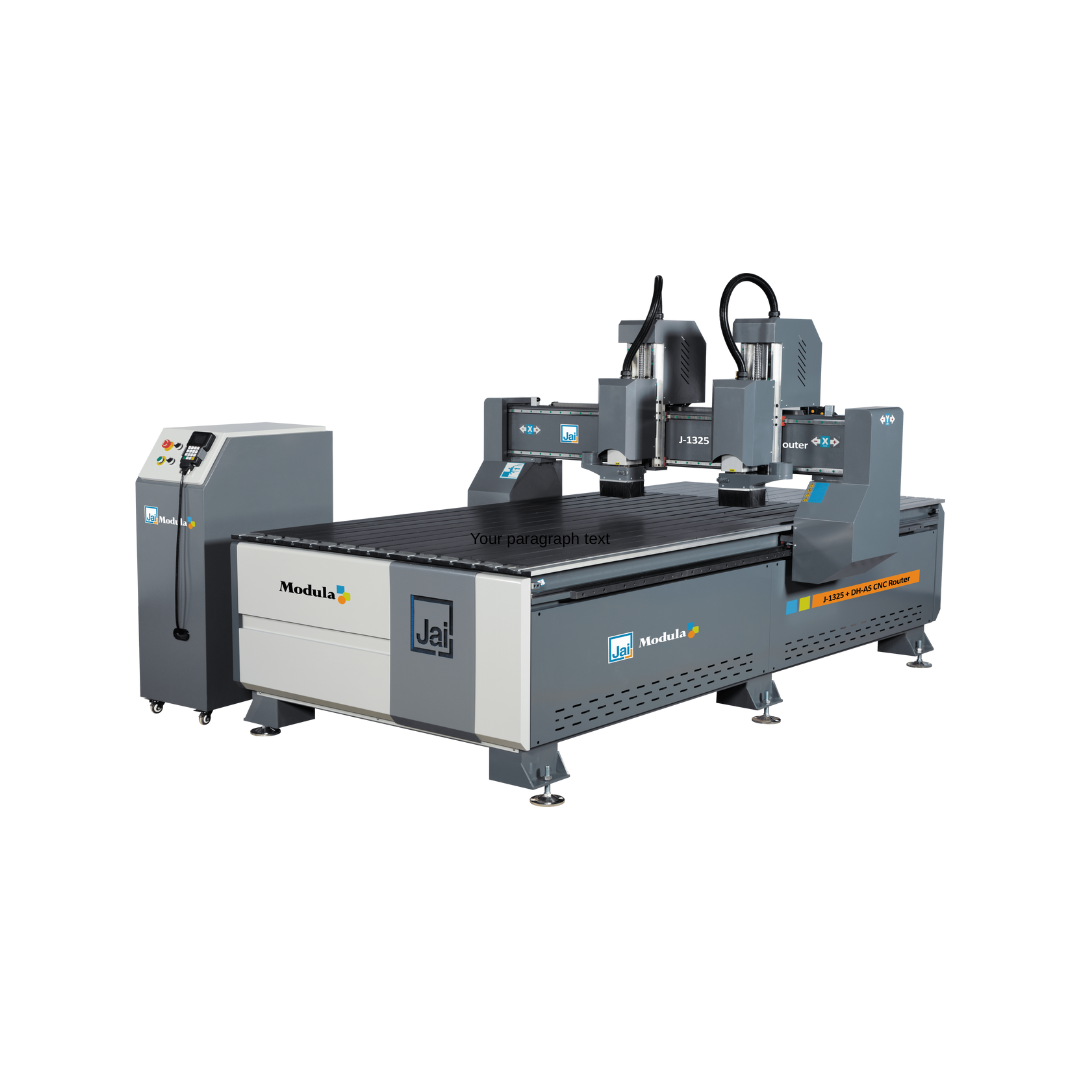

J-1325 + DH-S

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Details	Unit	J-1325 + DH-S
X - Y - Z axis working area	mm	1300 x 2500 x 300
Traveling Positioning Accuracy	mm	±0.1 mm
X, Y Working Delicacy	mm	±0.05 mm
X - Y movement	-	Rack & pinion gear drive
Z movement	-	Ball screw
Body structure		Steel structure with six legs
Maximum speed	mm/min	35,000
Maximum cutting speed	mm/min	25,000
Spindle	kw/rpm	2 x 3.5 / 4.5 kw/ 18000 rpm Air cooled spindle
Drive motors	-	Servo
Invertor	kw	5.5
Guide rail	-	20 mm “Hiwin” Taiwan guide rail
Working voltage	-	AC 380V / 50Hz, 3Ø
Command code	-	G code
Computer interface	-	USB 2.0
Collet type & size	-	ER32
Compatible Software	-	Art Cam / Type 3
Controls	-	Digital signal processor (DSP) A11E
Oil lubrication system	-	Manual
Vacuum table	-	Optional
Total power	hp	18
Machine dimensions (L x B x H)	mm	3200 x 3500 x 1800
Approx. net weight	kg	1400
