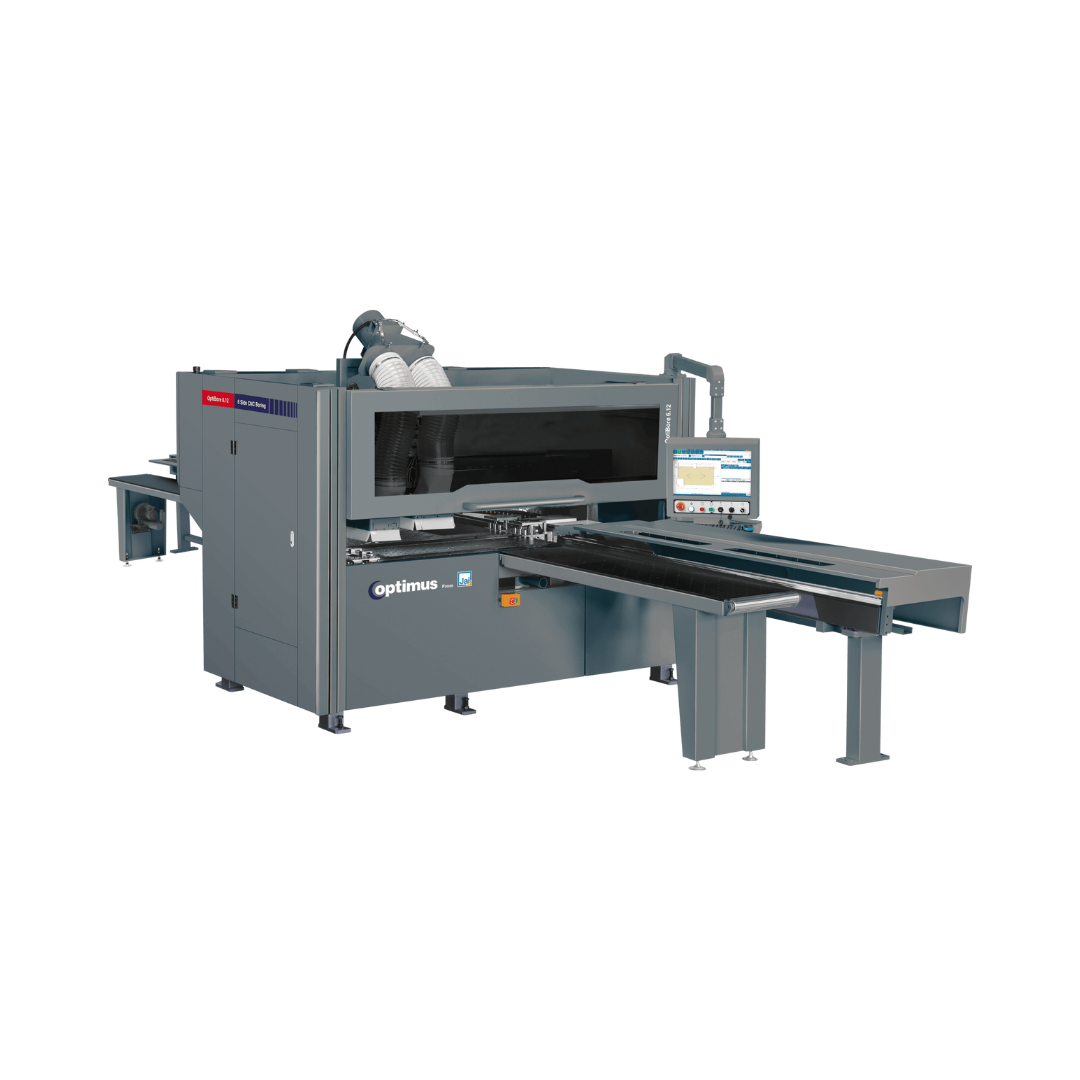

OptiBore 6.12

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical Specification	Unit	OptiBore 6.12	OptiBore 6.12D
Control system 21” PC with Indigenous control system
Work piece processing size
Panel width - max. / min.	mm	1210 / 30	1210 / 30
Panel length - max. / min.	mm	3300 / 70	3300 / 70
Panel thickness - max. / min	mm	55 / 9	55 / 9
Maximum positioning speed
X & U - Axis	m / min	130	130
V & Y - Axis	m / min	100	100
W & Z - Axis	m / min	30	30
A - Axis	m / min	60	60
Boring unit
Vertical drilling bit - top		12	12 x 2
Vertical drilling bit - bottom	mm	9	9
Horizontal drilling bit	mm	X Axis - 2 + 2 Y Axis - 2 + 2	X Axis - 2 + 2 x 2 Y Axis - 2 + 2 x 2
Motor power	kw / hp	2.2 / 3	2.2 / 3
Routing unit
Top - router spindle power	noxkw/hp	1 x 6 / 8	1 x 6 / 8
Bottom - router spindle power	noxkw/hp	2 x 6 / 8	2 x 6 / 8
Spindle speed	rpm	18000	18000
Other specifications
Working table height	mm	950	950
Dust extraction port	mm	150Ø & 200Ø	150Ø & 200Ø
Air pressure	kg / cm²	6 to 8	6 to 8
Total power	kw / hp	29.1 / 38.7	34.3 / 45.6
Machine dimension (L x B x H)	mm	5900 x 2850 x 2500	5900 x 2850 x 2500
Approx. net weight	kg	2700	2800
