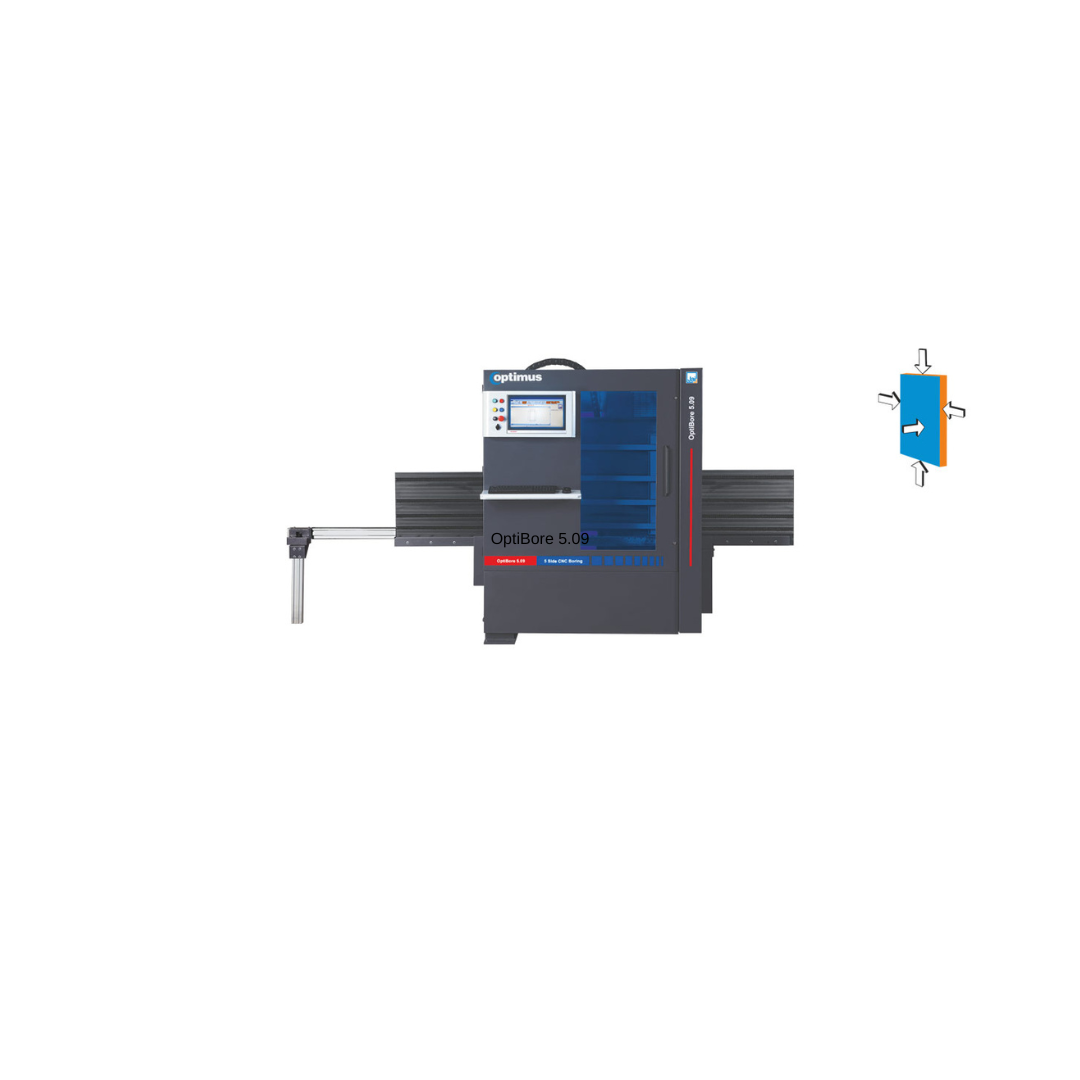

OptiBore 5.09

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical Specification	Unit	OptiBore 5.09
Control system 15” PC with Indigenous control system
Work piece processing size
Panel width - max. / min.	mm	2500 / 200
Panel length - max. / min.	mm	900 / 70
Panel thickness - max. / min	mm	60 / 12
Maximum positioning speed
X - Axis	m / min	50
Y - Axis	m / min	50
Z - Axis	m / min	15
Boring & Grooving unit
Vertical drilling spindle	no.	8
Horizontal drilling spindle	no.	4 (X-Direction) 2 (Y-Direction)
Horizontal drilling spindle	no.	4 (X-Direction) 2 (Y-Direction)	Tool shank diameter	mm	10
Grooving saw diameter - X (Axis)	mm	120Ø
Motor power	kw / hp	2.2 / 3
Routing unit
Router spindle power	kw / hp	6 / 8
Spindle speed	rpm	18000
Spindle collet		ER32
Other specifications
Dust extraction port	mm	150Ø
Compressed air pressure	kg / cm²	6 to 7
Total power	kw / hp	12.5 / 16.7
M/c. dimension (L x B x H)	mm	3750 x 1870 x 2120
Approx. net weight	kg	1600
