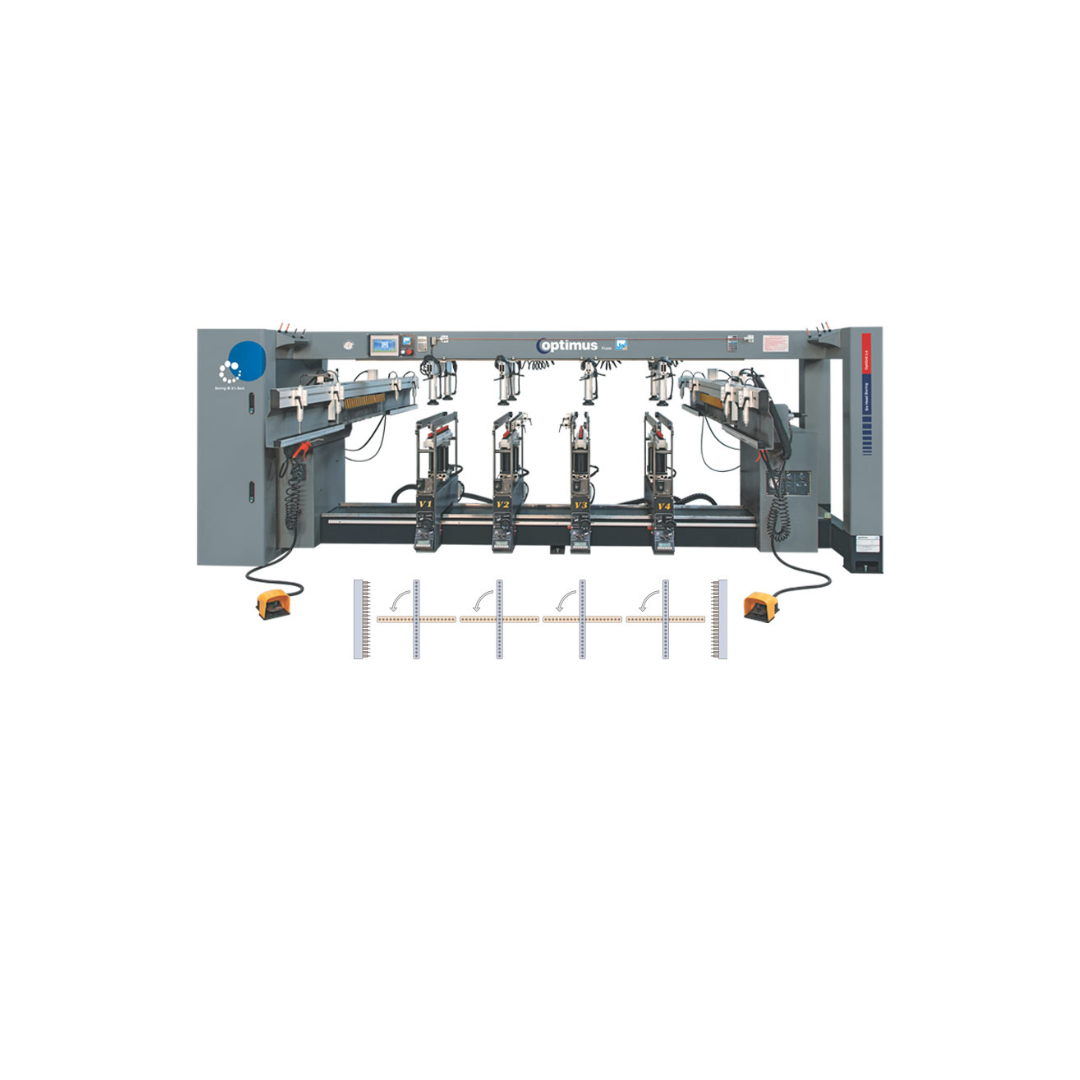

| Technical Specification | Unit | OptiDrill 2.6 |
| Maximum working thickness | mm | 60 |
| Maximum size of work piece | mm | 2400 x 640 |
| Number of spindle head | no. | Six (Two horizontal and four vertical) |
| Number of spindle head | no. | 21 |
| Total spindles | nos. | 21*6 = 126 |
| Shank diameter of drill | mm | 10 |
| Spindle rotation speed | rpm | 2800 |
| Maximum drilling diameter | mm | 32 |
| Drilling depth | mm | 0 ~ 50 (drill length 70 mm) |
| Compressed air required | kg/cm² | 6 to 8 |
| Total power | hp | 6 no's x 2 hp = 12 |
| Machine dimensions (L x B x H) | mm | 4400 x 3050 x 1650 |
| Approx. net weight | kg | 1700 |
