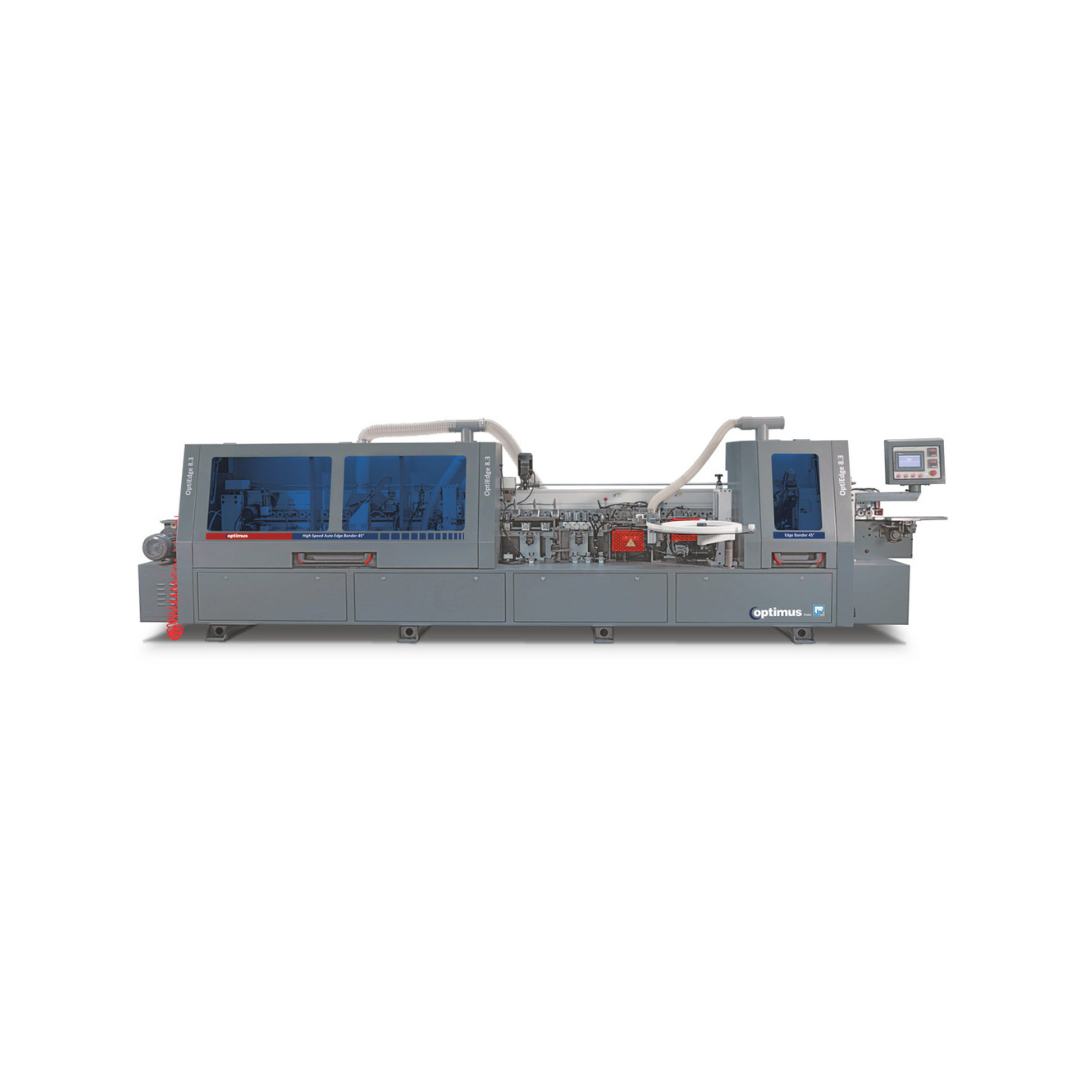

OptiEdge 8.3

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical Specification	Unit	OptiEdge 8.3
Work piece thickness range - Inclined 45° edge	mm	15 - 25
Minimum work piece width	mm	80
Minimum work piece length	mm	150
Edge banding thickness for PVC & ABS in coil form - Inclined 45° edge	mm	0.4 - 2.0
Work piece feeding speed	m/min	12
45° milling motor power	no/hp	1 x 4
End cutting motor power	no/hp	2 x 0.5
Trimming motor power	no/hp	2 x 1
Buffing motor power	no/hp	2 x 0.5
45° Tape groove motor power	no/hp	1 x 0.5
Air pressure required	kg/cm²	6 to 8
Working temperature range	ºC	180 - 200
Glue pot capacity	kg	4
Total power	hp	26.2
Machine dimension (L x B x H)	mm	6400 x 1400 x 1600
Approx. net weight	kg	2400
