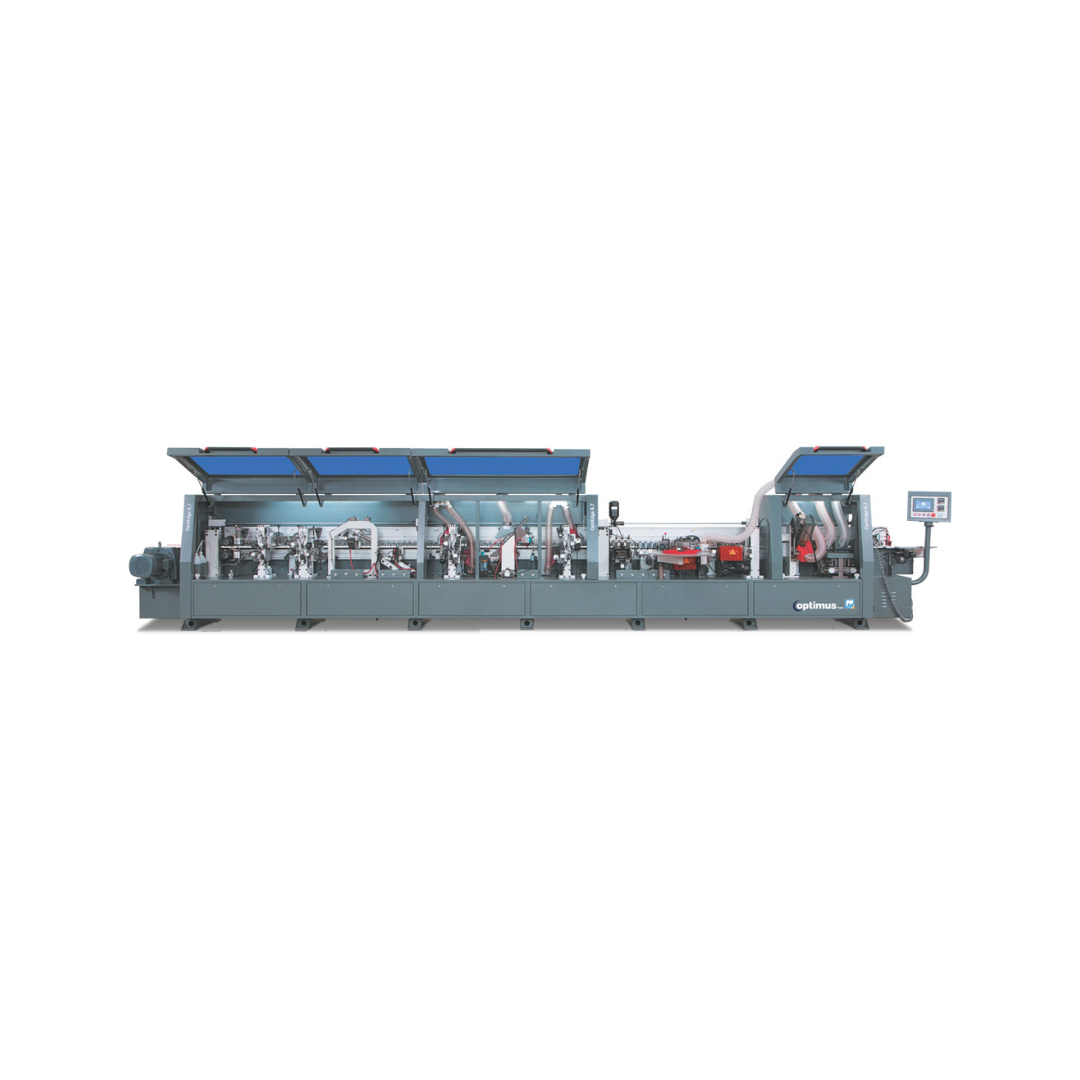

OptiEdge 8.7

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical Specification	Unit	OptiEdge 8.7
Work piece thickness range - Inclined 45° edge - Full straight 90° edge	mm mm	15 - 25 10 - 60
Work piece size width x length - Inclined 45° edge - Full straight 90° edge	mm mm	80 - 150 80 - 150
Edge banding thickness for 'PVC & ABS in coil form - Inclined 45° edge - Full straight 90° edge	mm mm	0.4 - 2.0 0.4 - 3.0
Work piece feeding speed - Inclined 45° edge - Full straight 90° edge	mm mm	15 up to 25
Pre-milling motor power	m/min	2 x 3
45° milling motor power	no/hp	1 x 7.5
End cutting motor power	no/hp	2 x 0.5
90° & 45° Trimming motor power	no/hp	4 x 1
Round cornering motor power	no/hp	2 x 0.5
Buffing motor power	no/hp	2 x 0.5
45° Tape groove motor power	no/hp	1 x 0.5
Air pressure required	kg/cm²	6 to 8
Working temperature range	ºC	180 - 200
Glue pot capacity	kg	4
Total power	hp	40.2
Machine dimension (L x B x H)	mm	9300 x 1530 x 1600
Approx. net weight	kg	4300
